Calibration chart for Japy tanks UE/CF/Kryos

SMS 4’’ self-cleaning threaded plastic nose cap

Reference LV666

Prominox

Stainless steel screw A2 M24x100 for leg CH110 - Alfa-Laval & Prominox tanks

Reference CH157

Stainless steel female threaded nose plug SMS Ø63

Reference CH218

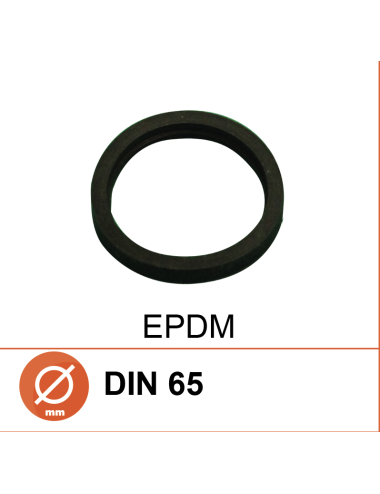

"L" seal EPDM DIN Ø65

Reference CH213

Expanding liner DN51 for nut SMS Ø51

Reference CH124

SMS male/female elbow tank outlet Ø63

Reference CH257

Packo

Handle KK valve, L:100mm, Packo tanks

Reference PA088

Smooth end 50 with socket for DIN nut Ø50 L:100mm

Reference CH237

Stainless steel female nut DIN Ø52

Reference CH183

Japy

Pivot for CH and HCA adaptable lid

Reference JA021A

Packo

Papillon de vanne KK DN65

Reference PA151

Wide-mouthed connection to flare DN51 /male DIN Ø52

Reference CH197

DEFINOX

Milk inlet cuff 2x1/2 Definox 76 valve - 1x clamp 38

Reference CH1300

Sodime

Manchette arrivée de lait 2x1/2 vanne Sodime 76 - 1x clamp 38

Reference CH1319

SMS female stainless steel reduction Ø76 / SMS male Ø63

Reference CH241

Milk inlet from the bottom screwed version SMS51/51

Reference CH207
